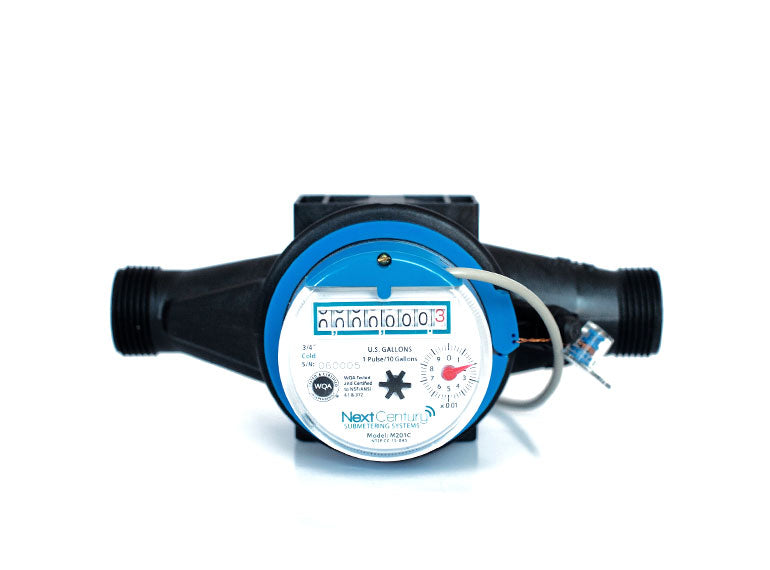

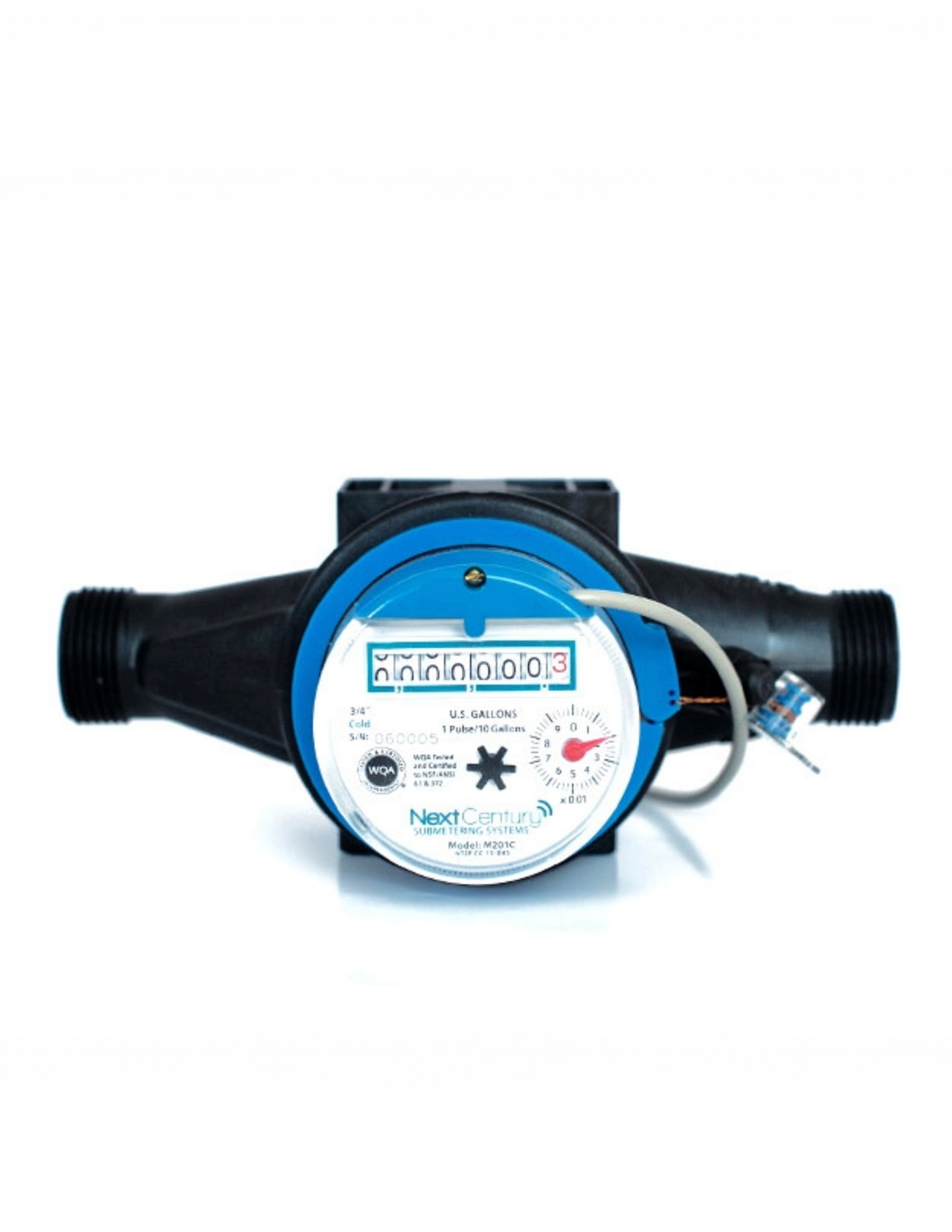

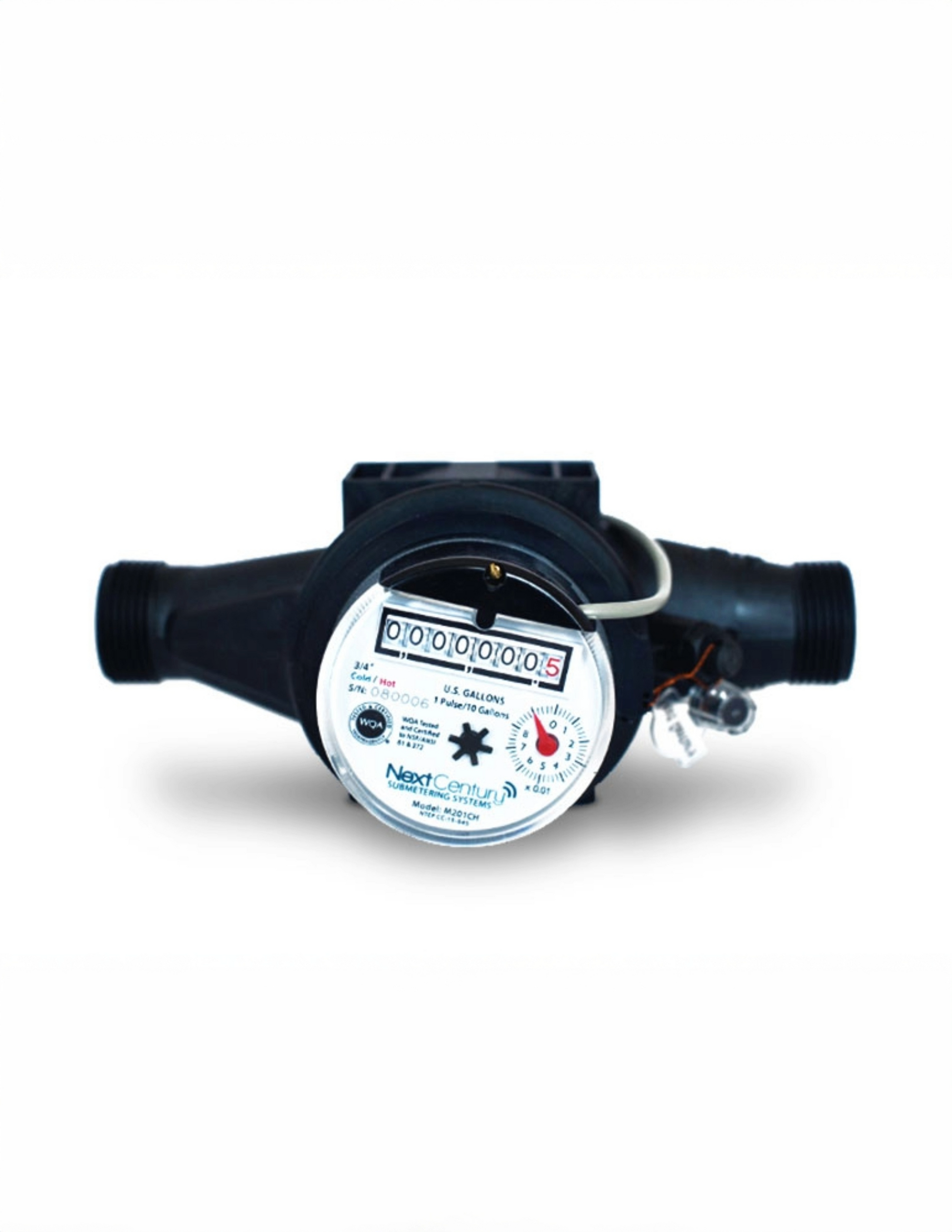

NextCentury M201C Multi-Jet Water Meter

Description:

The M201C is a high-performance (1 pulse per 10 gallons) water meter built for cold water submetering.

Features:

• Certified for horizontal or vertical use (AWWA C708)
• AMR-ready (Pre-wired pulse output)
• Accurate flow measurement – ±3% from 2–25 GPM
• Glass-reinforced nylon body, only 18 oz.
• NSF/ANSI 61 & 372, NTEP approved

Specifications:

• Pipe size: ¾" nominal
• Flow range: 2–25 GPM (±3%)
• Minimum flow: 0.5 GPM
• Maximum flow: 30 GPM
• Pressure rating: 150 PSI
• Temperature rating: Up to 105°F
• Pulse output: 1 pulse per 10 gallons (dry contact)
• Thread type: 1" NPSM
• Weight: 18 oz (1.1 lbs)
• Body material: Glass-reinforced nylon
• Certifications: AWWA C708, NSF/ANSI 61 & 372, NTEP
