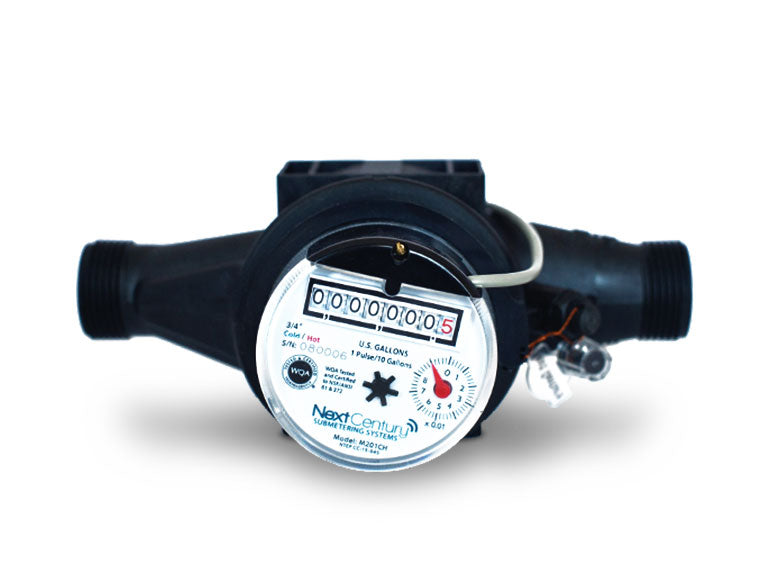

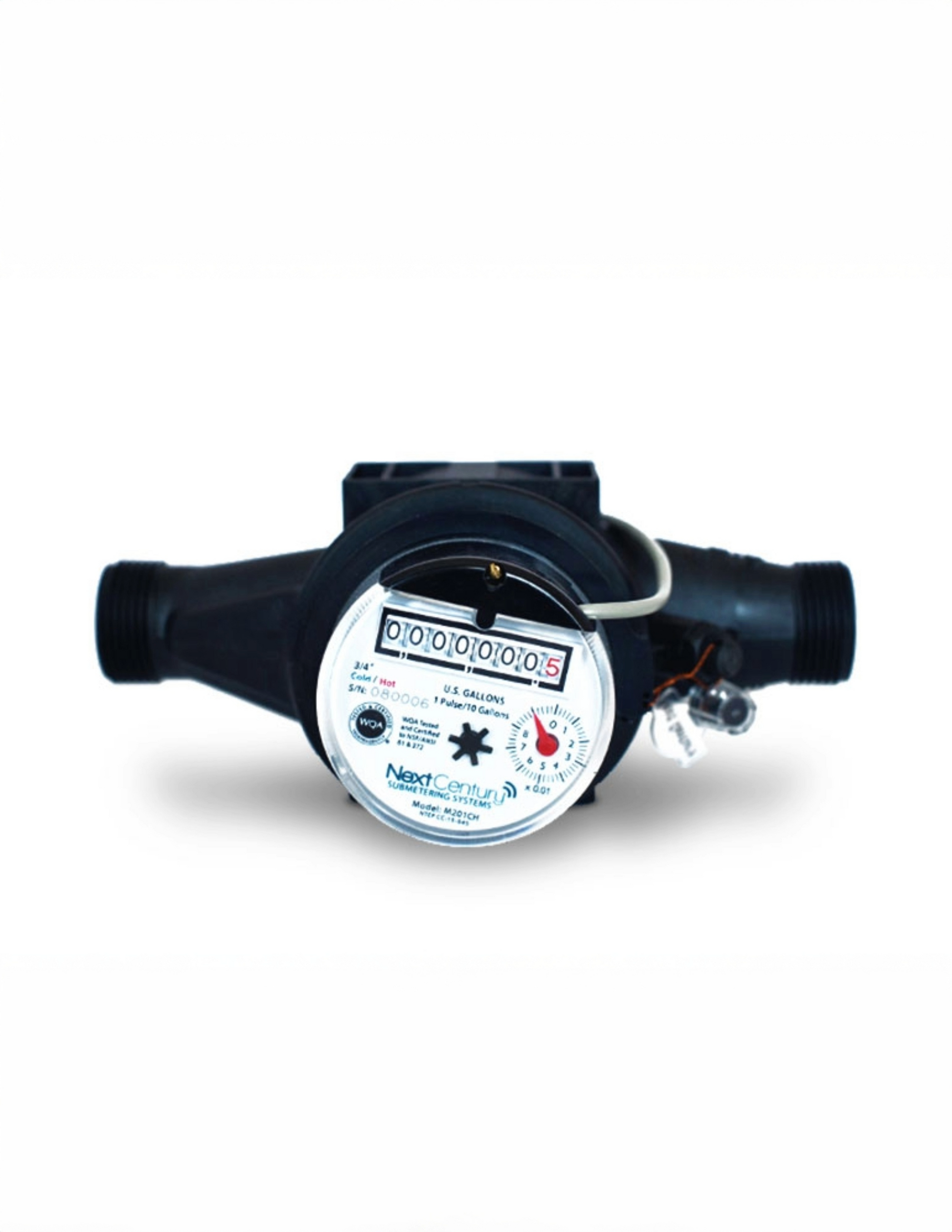

NextCentury M201CH Multi-Jet Hot Water Meter

Description:

The M201H is a hot water meter that uses multi-jet measurement technology for accurate readings across a wide flow range.

Features:

• Handles hot water up to 194°F
• Horizontal or vertical mounting (AWWA C708 certified)
• AMR-ready (Pre-wired pulse output)
• 18 oz. polymer build reduces pipe stress
• AWWA C708, NSF/ANSI 61 & 372, NTEP approved

Specifications:

• Pipe size: ¾" nominal
• Flow range: 2–25 GPM (±3%)
• Minimum flow: 0.5 GPM
• Max flow: 30 GPM
• Max pressure: 150 PSI
• Max water temp: 194°F
• Pulse output: 1 pulse per 10 gallons (dry contact)
• Thread size: 1" NPSM
• Weight: 18 oz (1.1 lbs)
• Body material: Glass-reinforced nylon
• Certifications: AWWA C708, NSF/ANSI 61 & 372, NTEP
