MTW Lead-Free Bronze Flange Kits
MTW Lead-Free Bronze Flange Kits
Regular price
$150.00
Regular price
Sale price
$150.00
Quantity
Couldn't load pickup availability
Description:

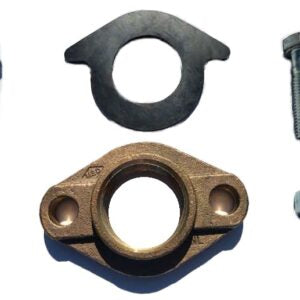

Includes cast bronze flanges, gaskets, Grade 8 bolts, and nuts. Available in multiple sizes and flange styles.
Features:
- Included Hardware: Grade 8 bolts, nuts, commercial-grade gaskets
- ASME B16 certified
- NSF/ANSI/CAN 61 & 372 compliant
- Available in round or oval flange
- Size range from 1.5" to 8"
- Suitable for indoor and outdoor environments
Specifications:
- Material: Lead-free cast bronze
- Thread Sizes: 1.5", 2", 3" NPT (varies by model)
- Bolt Patterns:
- FLG150LF KIT – 1.5" NPT | 5.75" x 3.6" | 4 x 5/8"-11 bolts
- FLG200LF KIT – 2" NPT | 6.0" x 4.0" | 4 x 3/4"-10 bolts
- FLG300LF KIT – 3" NPT | 7.5" diameter | 8 x 5/8"-11 bolts
- Installation: Includes washers as needed for proper assembly
Flow Rate Guidelines:
| Pipe Size | Typical Flow (GPM) | Best Applications |
|---|---|---|
| 1.5" NPT | 50-150 GPM | Small commercial, apartment buildings |
| 2" NPT | 100-300 GPM | Office buildings, retail facilities |
| 3" NPT | 200-500 GPM |
Large commercial, small industrial |
| Model | NPT Size | Flange Dimensions | Bolt Pattern | Application |
|---|---|---|---|---|
| FLG150LF KIT | 1.5" NPT | 5.75" x 3.6" | 4 x 5/8-11" bolts | Light commercial, multi-family |
| FLG200LF KIT | 2" NPT | 6.0" x 4.0" | 4 x 3/4-10" bolts | Standard commercial, institutional |
FLG 3" KIT 3" NPT 7.5" diameter 8 x 5/8-11" bolts Large commercial facilities
