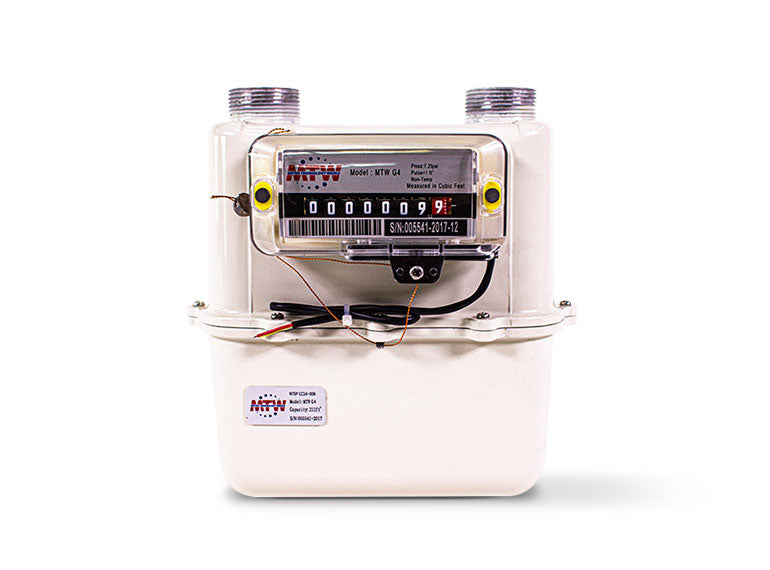

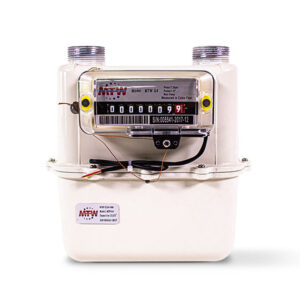

MTW G4 Compact Gas Meter

Description:

Compact gas submeter with pulse output. No temperature compensation is needed, making it ideal for basic gas monitoring in apartments, condos, and small commercial setups.

The MTW G4 uses Sprague #1A top connections, which let you attach standard swivel fittings. This means plumbers don’t have to build a custom connection; it’s ready to go with off-the-shelf parts.

Instead of using tapered NPT threads and pipe dope to seal the connection, this meter has straight threads that seal with a flat washer. This is the same setup used by most city-installed (municipal) meters and helps prevent leaks while making installation easier.

Features:

• Pulse output: 1 pulse per cubic foot
• Sealed register to prevent tampering
• Compact size
• Quiet operation
• Durable stamped steel case
• Sprague #1A connection threads (not NPT)
• 211 CFH | NTEP Approved

Specifications:

• Flow range: 1.4 to 211 cubic feet per hour
• Temperature range: 4°F to 122°F
• Pulse output: 12VDC max at 10mA
• Max pressure: 7.5 psi
• Cyclic volume: 0.04 cubic feet
