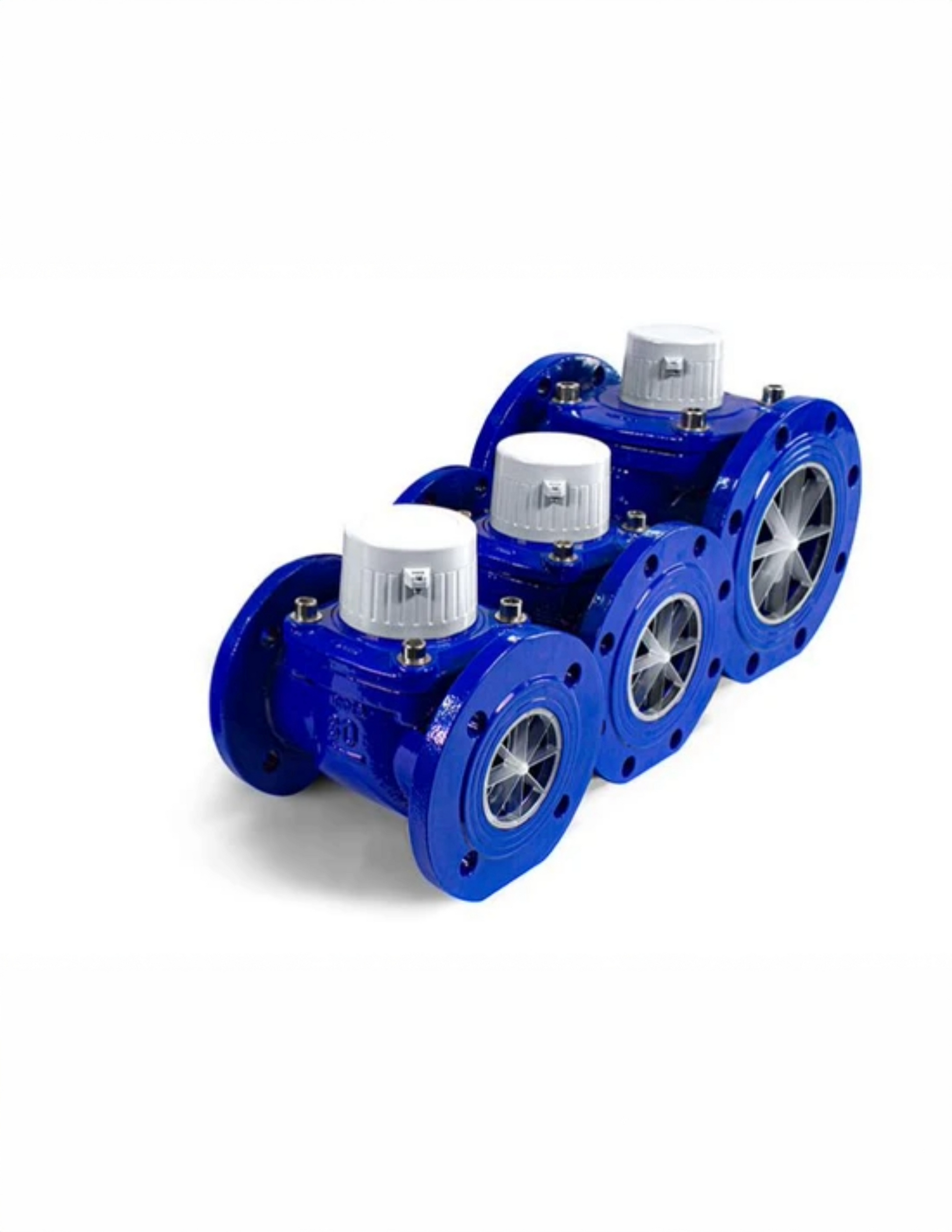

M&E Turbine LF CI USG

Cold Meter Features

• Meets or exceeds AWWA C701 Class II accuracy

• Remote ready, includes pit pulse

• Rated to 120°F and 200 psi

• Large numbers for easy reading

• Glass lens resists scratching

• Epoxy coated Cast Iron casing meets NSF/ANSI/CAN 61 and 372 standards

• 1-year new meter accuracy warranty/ 5-year standard warranty for casing, register, and accuracy (AWWA C701)

• 1 pulse = 100 USG or 10 CF (std)

Cold Meter Application

For use in measurement of potable cold water in commercial and

industrial applications where flow is in one direction only. Ideal for

high volume applications where space is cramped.

Hot Meter Features

• Meets or exceeds AWWA C701 Class II accuracy

• Remote ready, includes pit pulse

• Rated to 194°F and 200 psi

• Large numbers for easy reading

• Glass lens resists scratching

• Epoxy coated Cast Iron casing meets NSF/ANSI 372 standards

• 1-year new meter accuracy warranty/ 5-year standard warranty for casing, register, and accuracy (AWWA C701)

• 1 pulse = 100 USG or 10 CF (std)

Hot Meter Application

For use in measurement of hot water in commercial and industrial

applications where flow is in one direction only. Ideal for high volume

applications where space is cramped.
