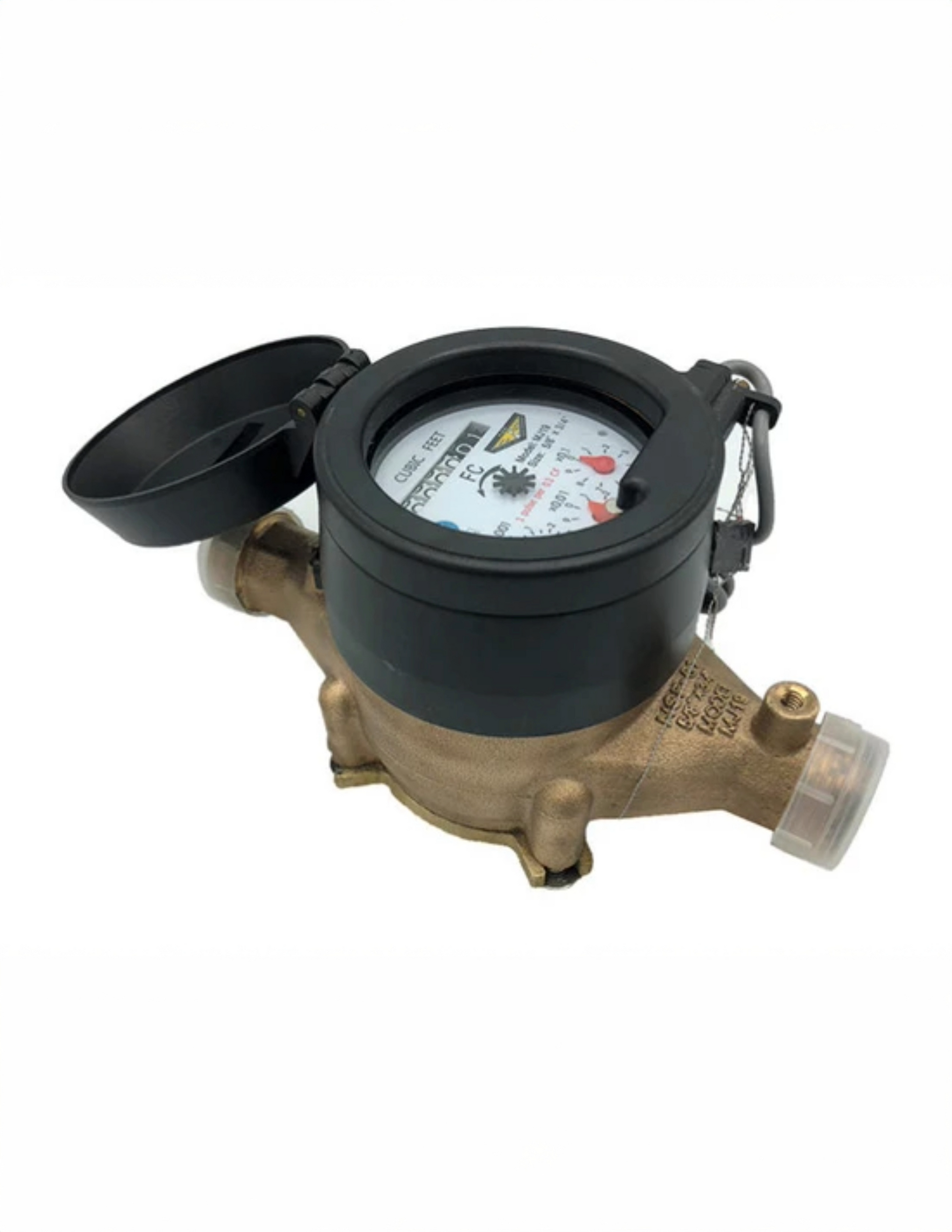

M&E MJ Series LF Bronze Meters

Features

Register

• All M&E meters come standard with pulse output

• Pulse Reed Switch rating: 24V max and 100 mA max

• All M&E meters are available in either gallon or cubic feet registration

• Magnetic drive, low-torque registration ensures accuracy

• Impact-resistant glass register resists scratching

• High-resolution, low-flow leak detection

• Bayonet-style register mount allows in-line serviceability

• Tamperproof seal pin deters theft

• Date of manufacture, size, and model stamped on dial face

Lead Free Main Case

• Made from lead free bronze

• NSF/ANSI/CAN 61 and 372 certified

• Includes 1/4”- 20 threaded boss for AMR/AMI pit installations

• Electrical grounding continuity

• 3/4” x 7.5” Meter available with 1.5” extension

Measuring Chamber

• Velocity-type (multi-jet) measuring chamber

• Widest effective flow range for maximum revenue

• Polymer measuring chamber materials maximize long-term accuracy

Specifications

• The MJ water meter consists of three major assemblies: a register, a lead free bronze main case, and a multi-jet measuring chamber.

• The MJ meter is available with a variety of register types. For reading convenience, the register is mounted hinged on the outlet side of the meter. The lead-free bronze main case is corrosion resistant and is rated for typical municipal applications.

• The multi-jet measuring chamber design of the measuring element ensures quiet operation with low wear characteristics.

• All M&E meters meet or exceed AWWA C708 standards.

• 5-year/1M USG new meter accuracy warranty.
