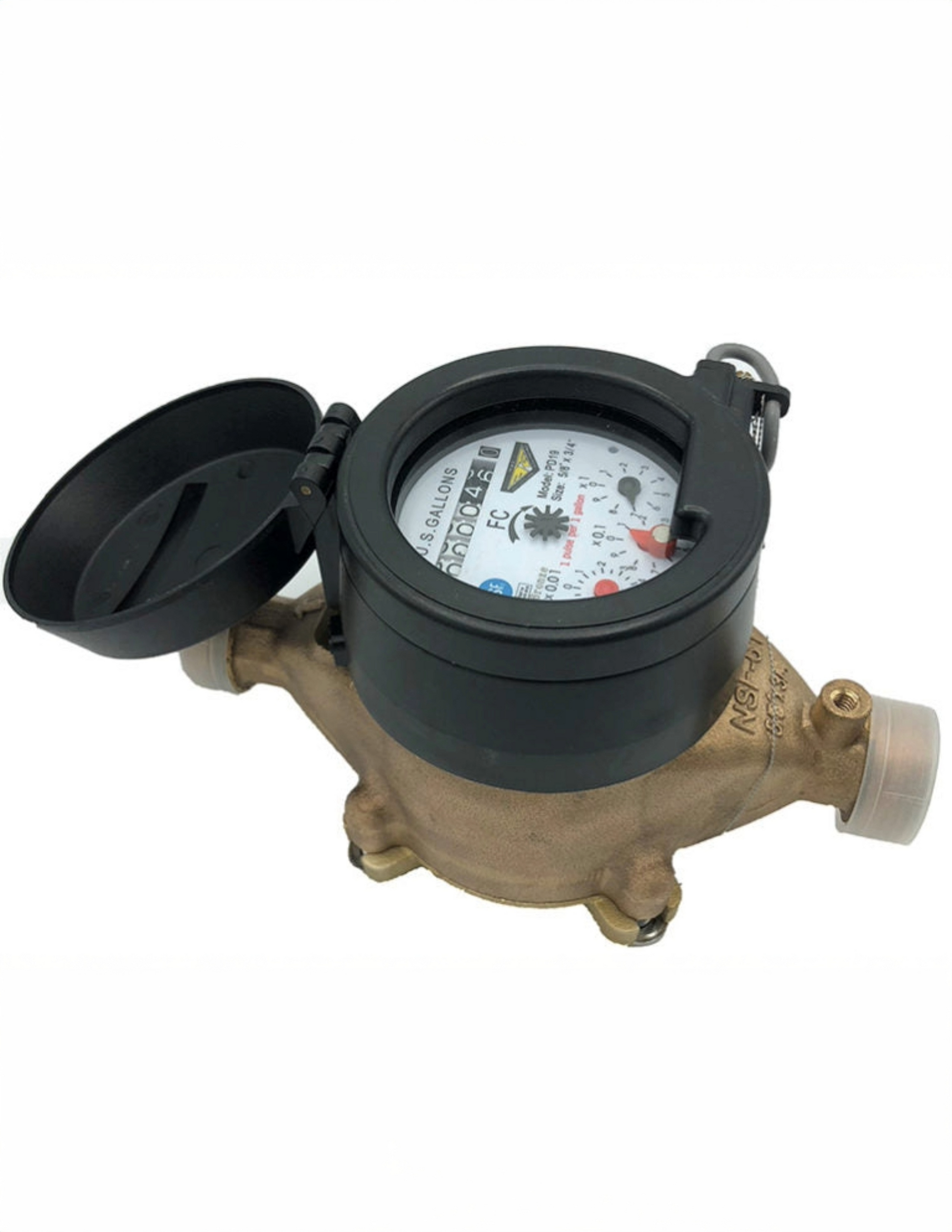

M&E PD Series LF Bronze Meters

Features

Register

• All M&E -NR meters ship configured to USG

» Field configurable to: USG, CF, Liters & Cubic Meters

• Encoded output

» All M&E -NR meters ship configured to Sensus encoded

protocol

» All M&E -NR meters are field configurable to: Neptune,

AMCO & Sensus protocols

• Pulse output

» Field configurable to pulse output

• Wireless meter reading

» Walk by, drive by and 3rd party capable

• Configurable using iOS and Android.

Lead-Free Main Case

• Made from lead-free bronze.

• NSF/ANSI/CAN 61 and 372.

• Includes 1/4”- 20 threaded boss for AMR/AMI pit installations.

• Electrical grounding continuity.

• 3/4” x 3/4” x 7.5” meter available with 1.5” extension.

Measuring Chamber

• Oscillating piston measuring chamber.

• Widest effective flow range for maximum revenue.

• Polymer measuring chamber materials maximize long-term accuracy.

Specifications

Water Meter

• The PD water meter consists of three major assemblies: a register, a lead-free bronze main case, and a positive displacement (oscillating piston) measuring chamber.

• For reading convenience, the register is mounted hinged on the outlet side of the meter. The lead-free bronze main case is corrosion resistant and is rated for typical municipal applications.

• The positive displacement chamber design of the measuring element ensures maximum accuracy in any installation orientation. The measuring unit is optimized for minimal wear.

• All M&E meters meet or exceed AWWA C700 standards.

• M&E provides a limited warranty. See warranty statement for details.

Register

• Incorporates Accuracy Data Leveling Technology as presented in: https://doi.org/10.1002/opfl.1757

• Built-in BLE communication for configuration and reading.

• Anti-obsolescence: 10-year estimated battery life, under normal operating conditions. Replaceable with CR18505 lithium battery.

• Operating Environment:

» IP68 for submersed applications.

» Temperature min -4o F

» Temperature max 120o F

• Exceeds IP68 requirements.

• Field replaceable, sealed battery.

• Complies with Part 15 of the FCC rules.
