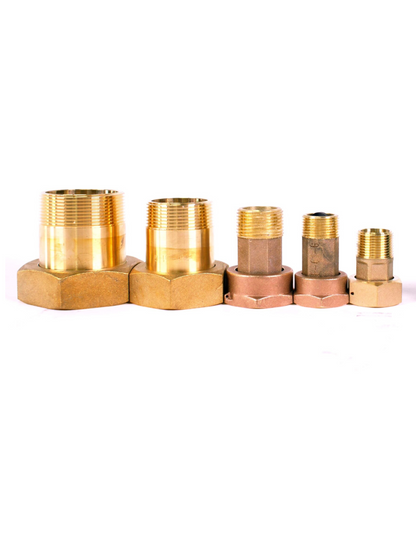

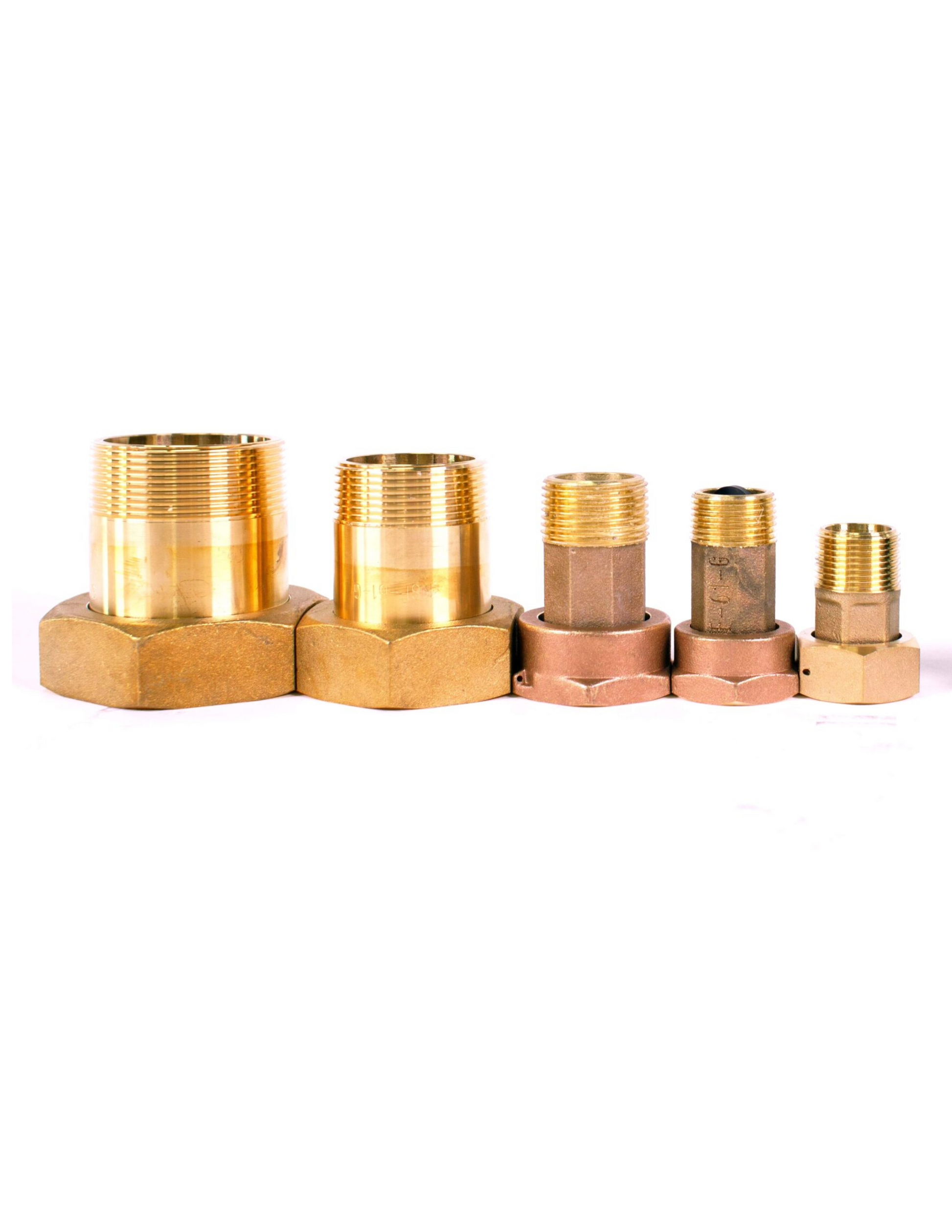

MTW Lead-Free Bronze Water Meter Couplings
MTW Lead-Free Bronze Water Meter Couplings
Regular price
$21.00
Regular price
Sale price
$21.00
Quantity
Couldn't load pickup availability
Description:
Available in polymer or lead-free bronze, each kit fits standard MTW meters and includes nuts, liners, and gaskets.
Features:
- Includes nuts, liners, and gaskets
- Union design
- Quick disconnect
- Material options:
- Polymer
- Lead-free bronze
- Meets NSF/ANSI 61 & 372 standards
- Compatible with all MTW meters
- Leak-free sealing
Specifications:
- Material: Lead-free bronze or polymer
- Size range: ¾" to 2"
-
Available lengths:
- ¾” – 1.5", 2", and 2.5"
- 1” – 2.5"
- 1.5” – 2.75" (bronze only)
- 2” – 3" (bronze only)
- Installation: No field threading or pipe cutting required
Lead-Free Bronze Couplings (Premium)
Model | NPT Connection | Length | NPSM Connection | Application |
---|---|---|---|---|
CPL 07520 LF | 3/4" NPT | 2" | 1" NPSM | Standard commercial |
CPL 07525 LF | 3/4" NPT | 2.5" | 1" NPSM | Service line clearance |
CPL 100 LF | 1" NPT | 2.5" | 1.25" NPSM | 1" service lines |
CPL 150 LF | 1.5" NPT | 2.75" | 2" NPSM | Commercial/industrial |
CPL 200 LF | 2" NPT | 3" | 2.5" NPSM | Large commercial |
