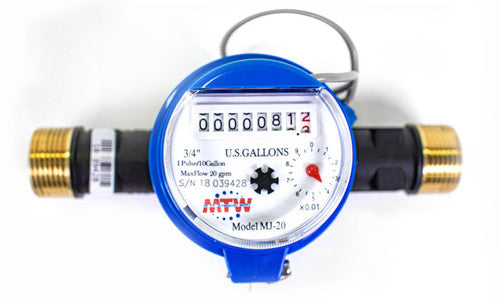

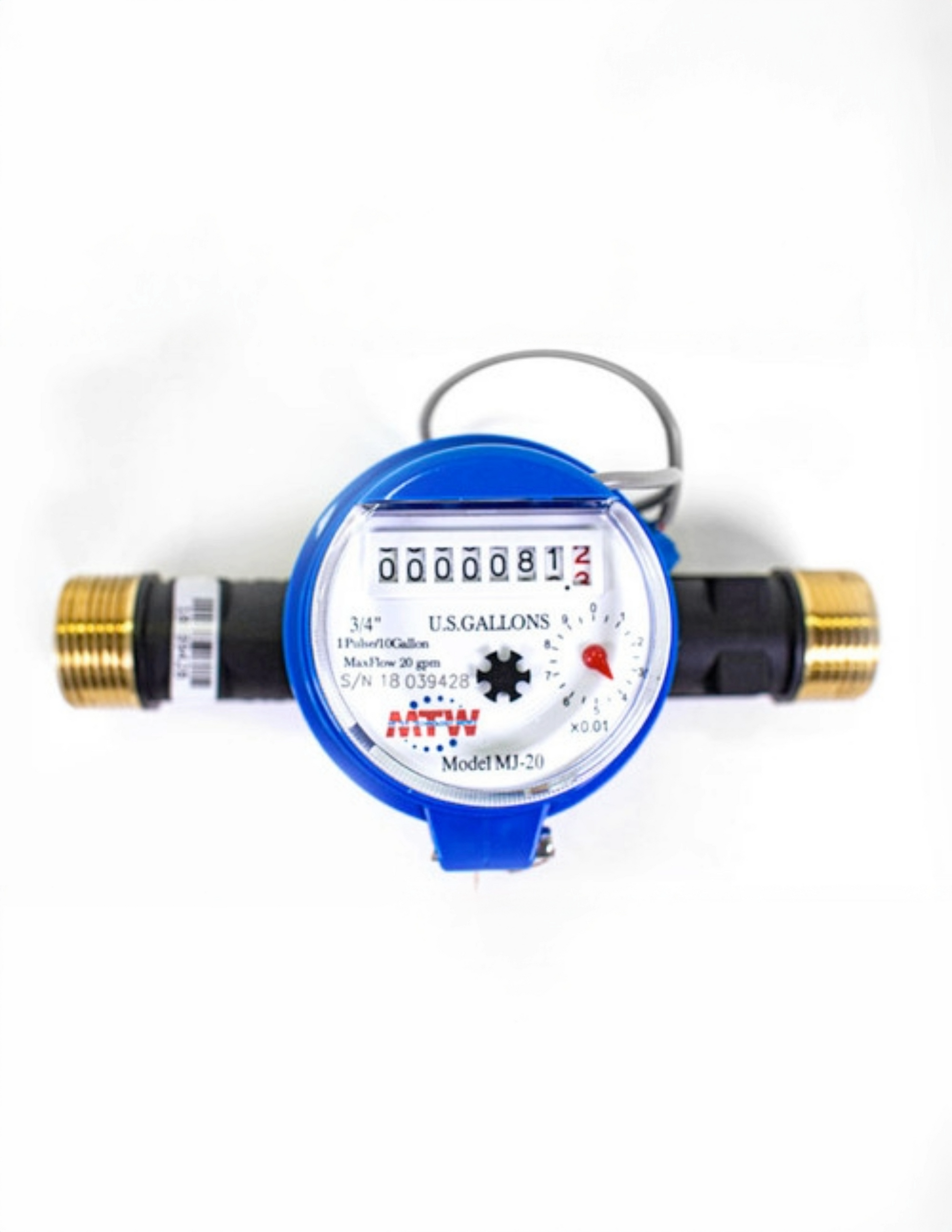

MJ20 Cold Poly Multi-Jet Water Meter

Description:

The MJ20 is a compact cold water meter designed for submetering in residential, commercial, or mixed-use properties.

Features:

• Pulse output: 1 pulse per 10 gallons
• Poly construction with brass threads
• Sealed register
• Quiet operation
• Meets NSF/ANSI 61 and NSF/ANSI 372
• Complies with AWWA C708 performance specs

Specifications:

• Max flow: 20 GPM
• Continuous flow rate: 15 GPM
• Max pressure loss at full flow: 10.9 PSI
• Accuracy (±1.5%): 1–20 GPM
• Minimum flow (±3%): 0.25 GPM
• Max working pressure: 150 PSI
• Max cold water temp: 105°F
• Thread size: 1” nominal spud
• Pipe size compatibility: ¾”
• Weight: 0.9 lbs
• Body material: Glass-reinforced nylon
