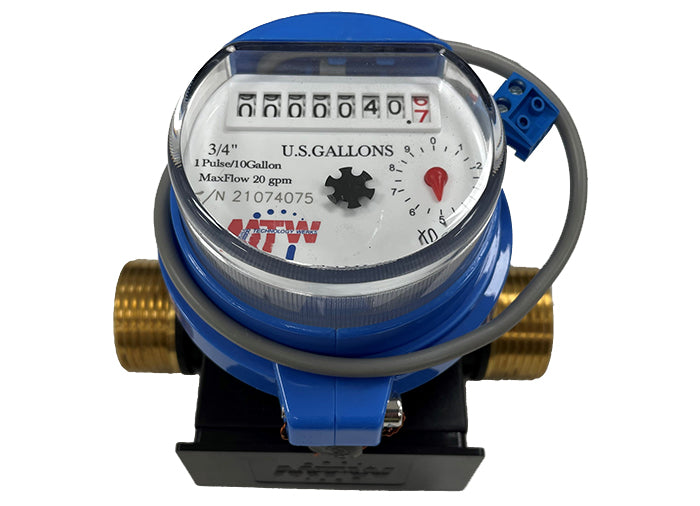

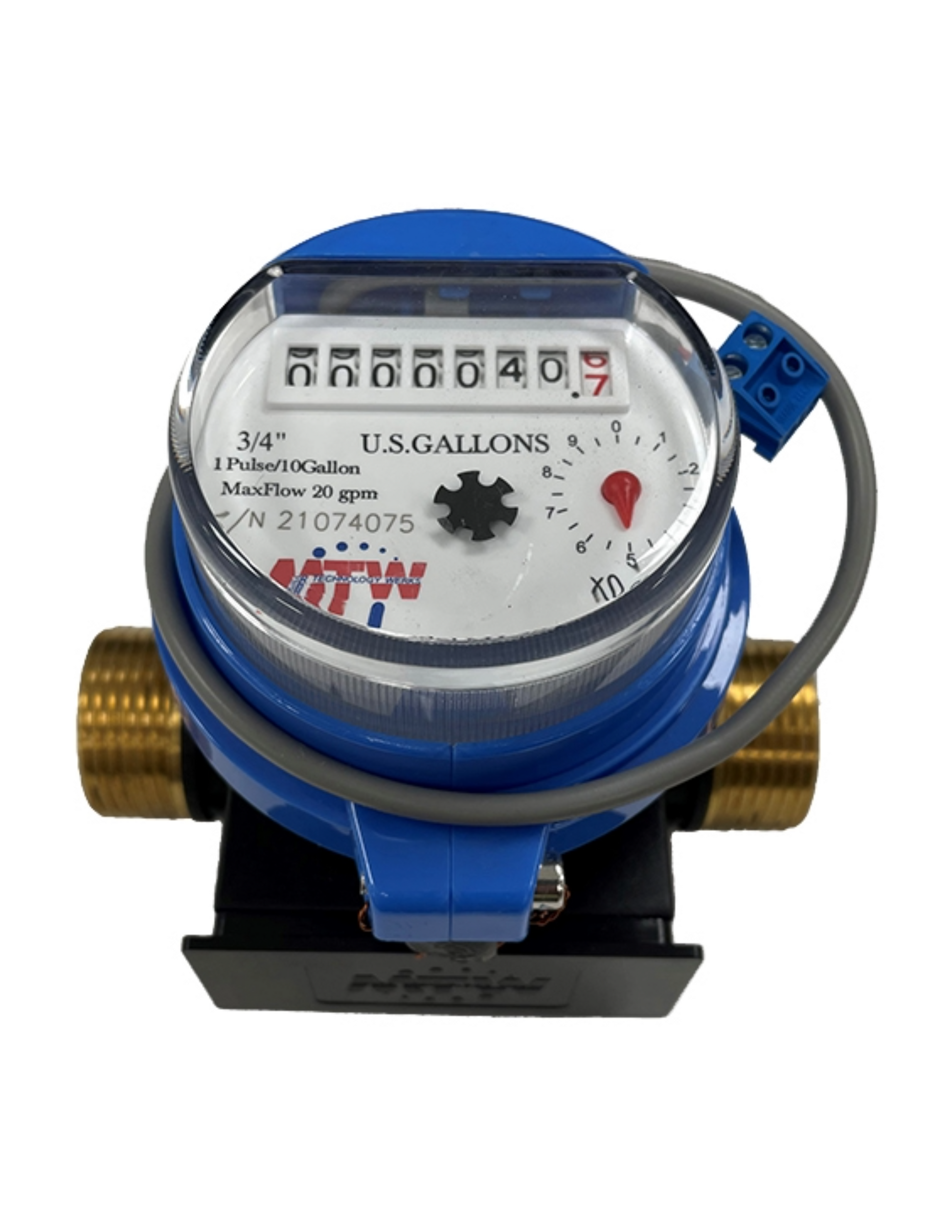

MJ20 Short Cold Poly Multi-Jet Water Meter

Features:

• Pulse output: 1 pulse per 1 gallon or 1 pulse per 10 gallons
• Poly body with brass threads
• Sealed register
• Quiet operation
• Meets AWWA C708 performance standards
• Certified safe NSF 61/G listed for potable water use

Specifications:

• Max flow capacity: 20 GPM
• Continuous duty flow rate: 15 GPM
• Pressure loss at max flow: 10.9 PSI
• Accuracy range (±1.5%): 1–20 GPM
• Minimum flow (±3%): 0.25 GPM
• Max working pressure: 150 PSI
• Max temperature (cold version – MJ20S): 105°F
• Meter thread size: 1” nominal spud thread
• Pipe size compatibility: ¾”
• Weight: 0.9 lbs
• Meter body material: Glass-reinforced nylon
