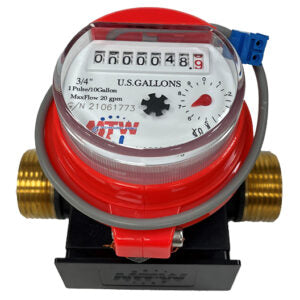

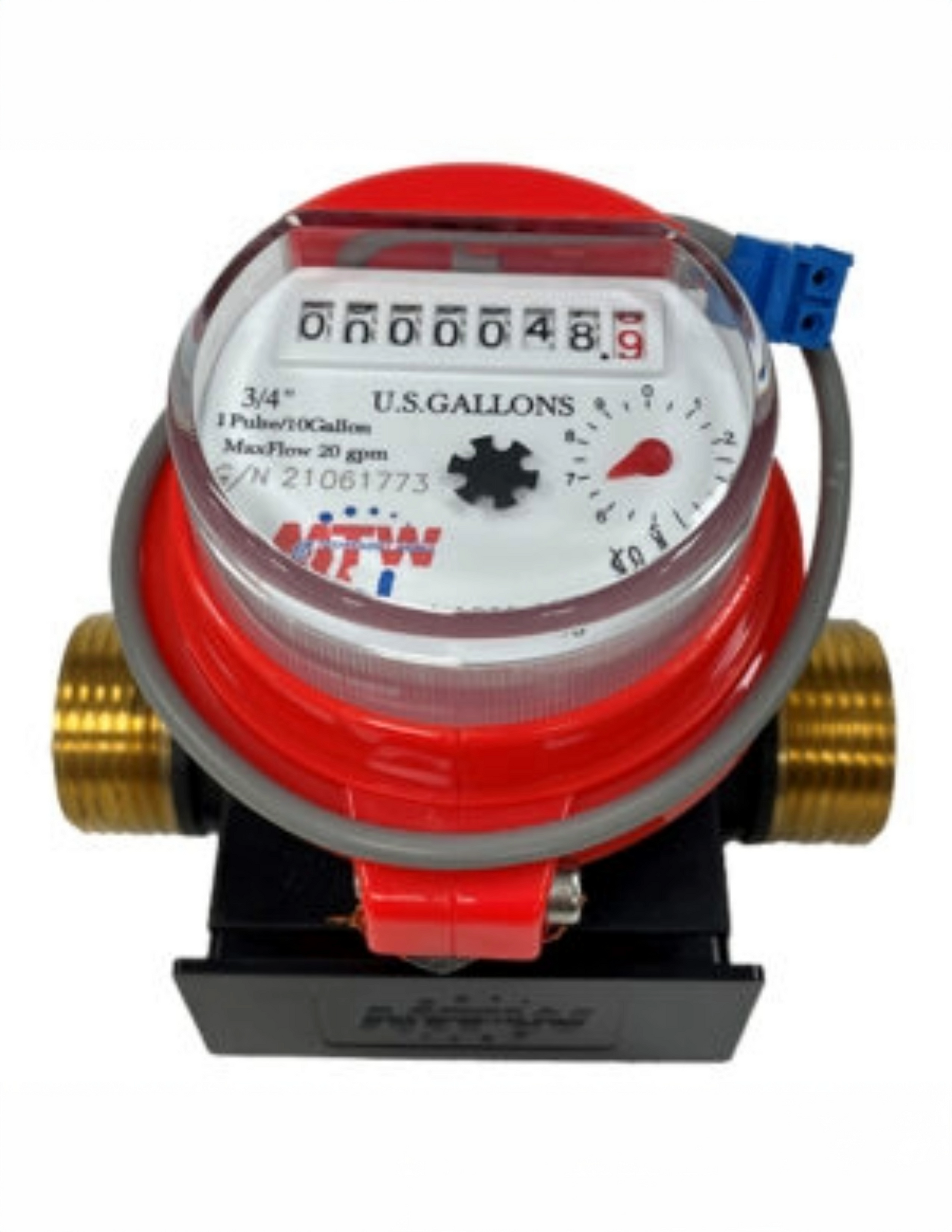

MJ420 Short Hot Poly Multi-Jet Water Meter

Features:

• Pulse output – Available in 1 pulse per 1 gallon or 1 pulse per 10 gallons
• Poly body with brass threads
• Sealed register
• Quiet operation
• Certified safe NSF 61/G listed for potable water
• Meets AWWA C708 performance standards

Specifications:

• Max flow capacity: 20 GPM
• Continuous duty flow rate: 15 GPM
• Pressure loss at max flow: 10.9 PSI
• Accuracy range (±1.5%): 1–20 GPM
• Minimum flow (±3%): 0.25 GPM
• Max working pressure: 150 PSI
• Max temperature: 194°F (hot water use)
• Thread size: 1” nominal spud thread
• Compatible pipe size: ¾”
• Weight: 0.9 lbs
• Body material: Glass-reinforced nylon
