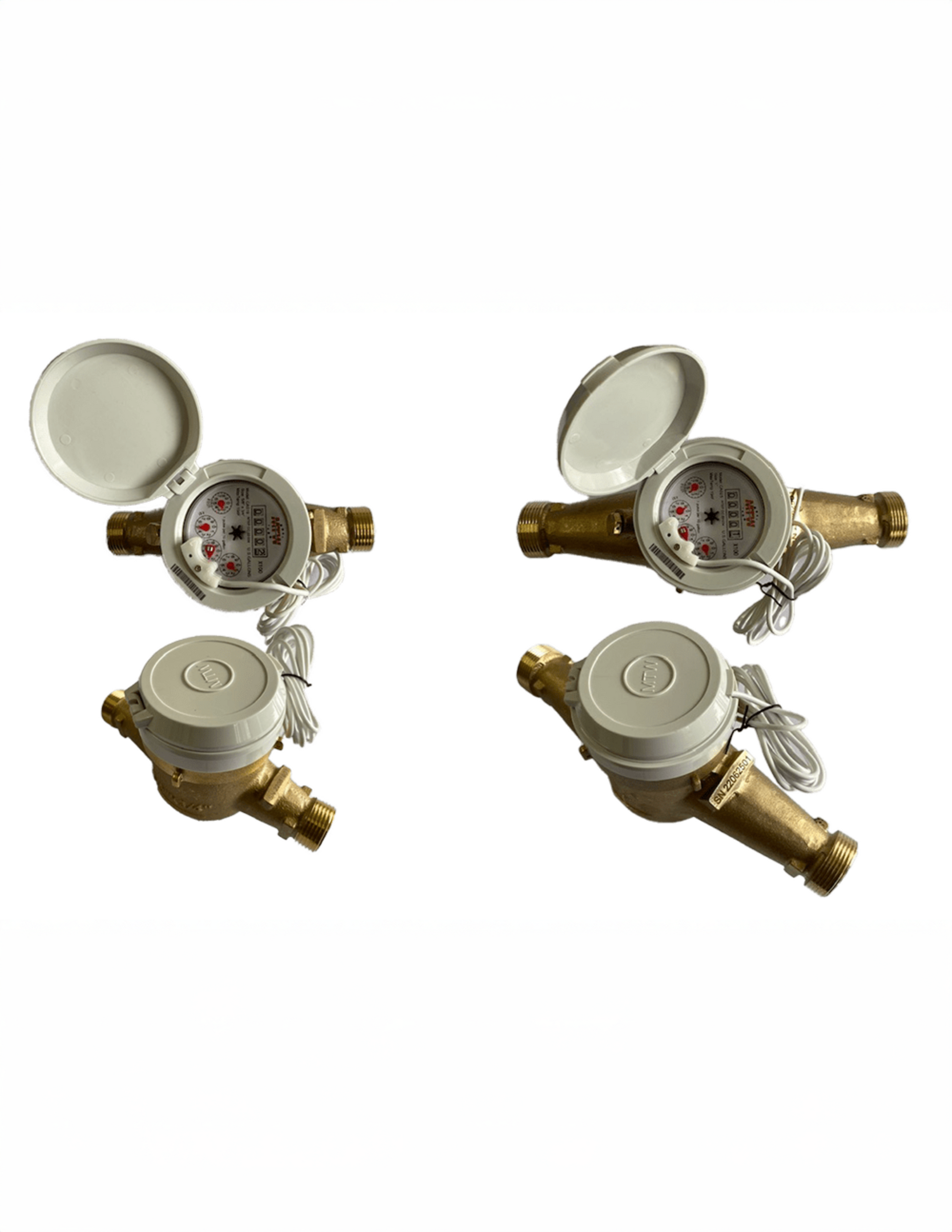

MTW CAS Hot Water Meters

Specifications

• The MJ CAS water meters consist of an all-inclusive brass body
with NPSM threads and sealed/tamper proof calibration ports.
• The MJ CAS water meters are available in 1CF and 10G pulse
output options. The pulser is accessible and easily replaceable
from the top of the meter.
• The multi-jet measuring chamber design ensures quiet operation
with low wear characteristics.
• NSF/ANSI 372 certified.
• 1-year new meter accuracy warranty/ 5-year standard warranty
for casing, register, and accuracy.

Features

Register
• All MTW CAS meters come standard with pulse output.
• Pulse Reed Switch rating: DC 24V max and 100mA max.
• Available in 10 GP and 1 CFP.
• Magnetic drive, low-torque registration ensures accuracy.
• Impact-resistant polycarbonate register lens resists scratching.
• High-resolution, low-flow leak detection.

Lead Free Main Case
• Made from lead free brass.
• NSF/ANSI 372 certified.
• Electrical grounding continuity.

Measuring Chamber
• Velocity-type (multi-jet) measuring chamber.
• Widest effective flow range for maximum revenue capture.
• Polymer measuring chamber materials maximize long-term
accuracy and reduce wear.
