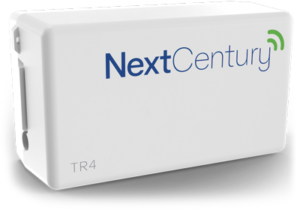

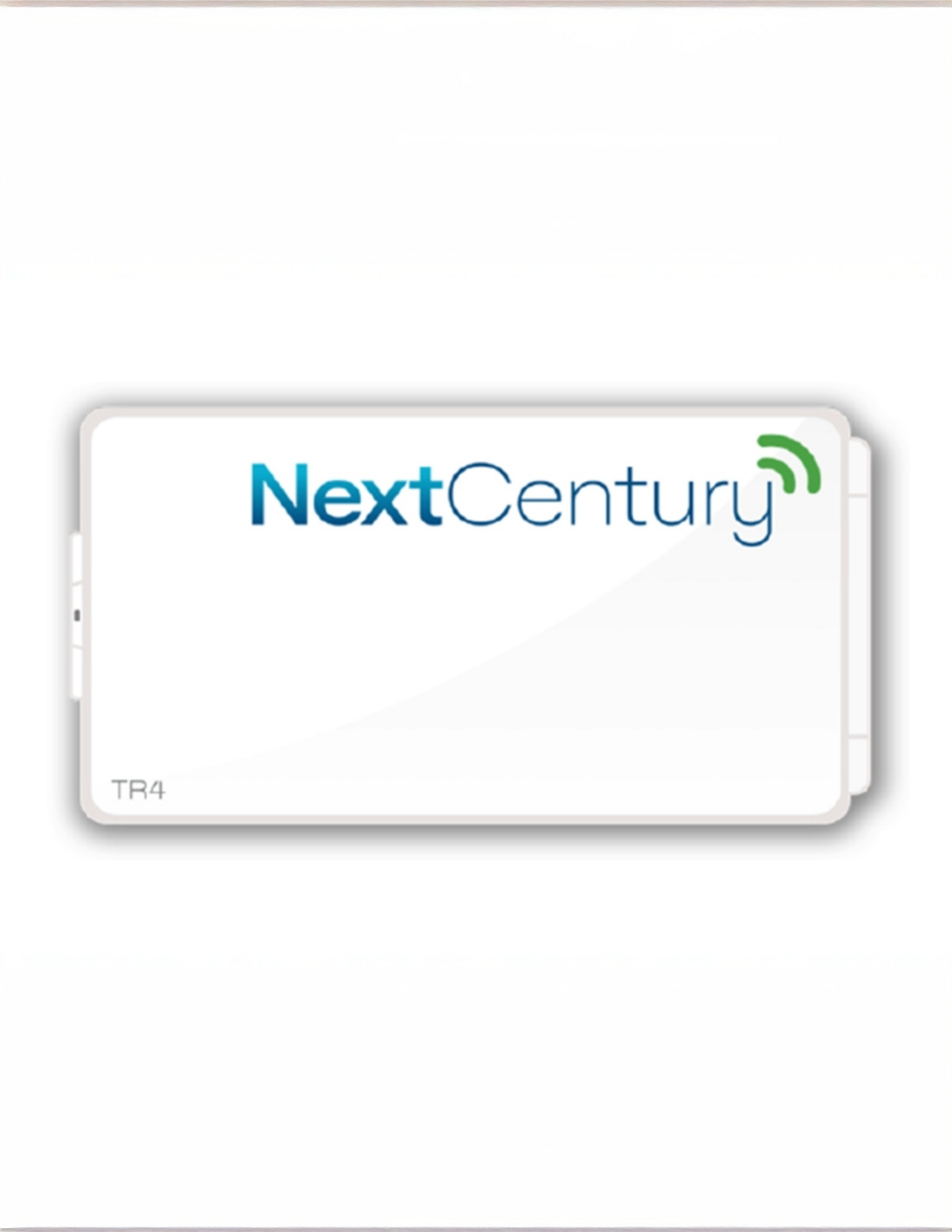

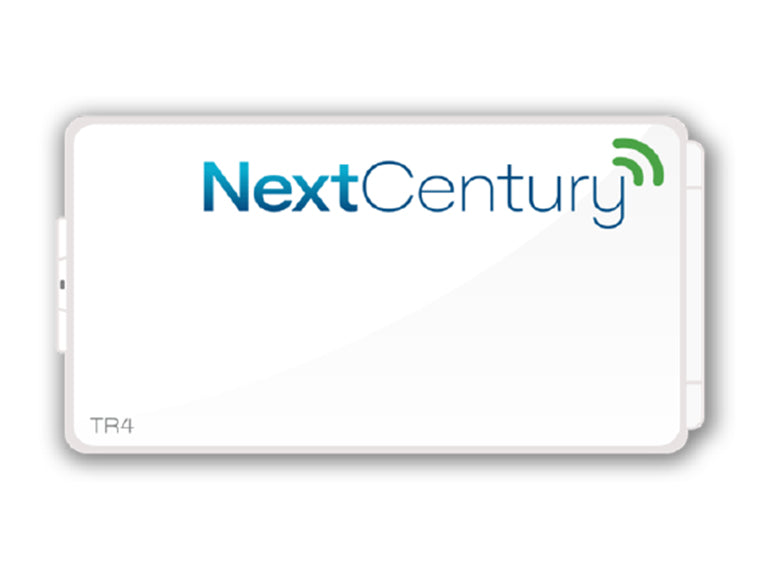

NextCentury TR4 Wireless Transceiver

Description:

Compatible with pulse and encoded meters; replaces earlier NextCentury transceivers and works with all existing Gateways and Repeaters.

Features:

• Supports pulse or encoded meters
• Compatible with Neptune, Sensus, and AMCO/Elster protocols
• Works with 18–22 gauge twisted or solid-core wire
• Meter+™ technology for broad compatibility
• Seamless integration with previous NextCentury networks
• Simple in-field configuration
• Provides hourly readings
• Intended for indoor, dry installations

Specifications:

• Wireless Communication: Two-way RF Connect™, 902–928 MHz
• Range: Up to 45,000 ft direct line of sight
• Battery: Preinstalled, field-replaceable CR18505, up to 10-year life
• Certifications:
• FCC ID: 2AB81-TR4
• IC: 20949-TR4
• Operating Temperature: -4°F to 140°F (-20°C to 60°C)
• Dimensions: 3.3" x 1.8" x 1.3" (84mm x 46mm x 33mm)
